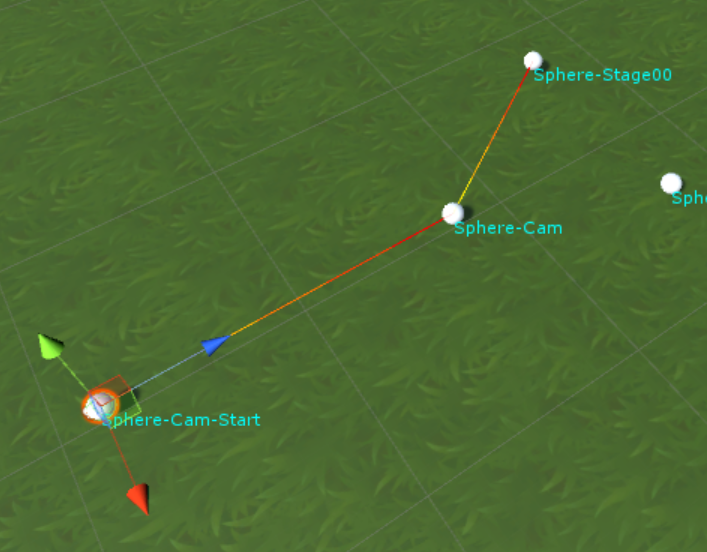

In scene view, at first, I draw arrow line, but it seems not professional. So I write DrawGradientLine.
void OnDrawGizmos() { #if UNITY_EDITOR base.OnDrawGizmos(); if (destination) { DrawGradientLine(transform.position, destination.position, Color.yellow, Color.red); } #endif } private void DrawGradientLine(Vector3 from, Vector3 to, Color tailColor, Color headColor) { int divideNum = 5; Vector3 unitVector = (to - from) / divideNum; float colorChangeRatio = 1.0f / (divideNum - 1); for (int i=0; i<divideNum; i++) { float headColorRatio = i * colorChangeRatio; Color lineColor = tailColor * (1-headColorRatio) + headColor * headColorRatio; Gizmos.color = lineColor; Gizmos.DrawLine(from + unitVector * i, from + unitVector * (i + 1)); } }
extra
private void DrawArrow(Vector3 from, Vector3 to, Color color) { Gizmos.color = color; Gizmos.DrawLine(from, to); // arrow Vector3 v = (from - to).normalized; var v2 = Quaternion.AngleAxis(30, Vector3.up) * v; var v3 = Quaternion.AngleAxis(-30, Vector3.up) * v; Gizmos.DrawLine(to, to + v2); Gizmos.DrawLine(to, to + v3); }
